Description
Mechanical Seat Suspension for JD, AC, IH, FD, NH, MF, Cat, IR, CIH
For Multiple Applications Including But Not Limited To:
AGCO GT55, GT65, GT75
Allis Chalmers 6670, 6680, 6690
IH / Farmall 75C, 85U, 90, 95, 95C, 95HC, 95U, 105U
Case IH JX55, JX60, JX70, JX75, JX80, JX85, JX90, JX95
Ford / New Holland TD80D, TD95D, TD5030, TD5050, TN55D, TN55S, TN65D, TN65F, TN65S, TN65V, TN70D, TN70S, TN75D, TN75F, TN75S, TN75V, TN90F, If Original Seat is Grammer
John Deere 1600, 1600T, 1620, 3215B, 3225B, 3225C, 3235B, 3235C, 3245C, 5083E, 5093E, 5101E, 5220, 5225, 5320, 5325, 5420, 5425, 5520, 5525, 5603, 5625, 6110, 6110L, 6120, 6120L, 6200, 6200L, 6210, 6210L, 6215, 6220, 6220L, 6230, 6300, 6300L, 6310, 6310L, 6320, 6330, 6400, 6400L, 6403, 6405, 6410, 6410L, 6415, 6420, 6430, 6500, 6500L, 6510L, 6603, 6605, 6615, 6715, 7130, 7230, 7330
Massey Ferguson 471, 481, 491, 492, 573, 583, 593, 596, 2220, 2650, 2660, 2670, 2680, 3330, 3315, 3325, 3340, 3350, 3355 If Tractor has a Cab and Original Seat is Grammer
White 6065, 6085

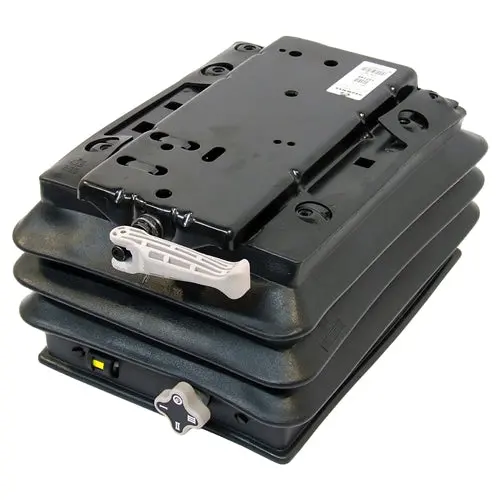

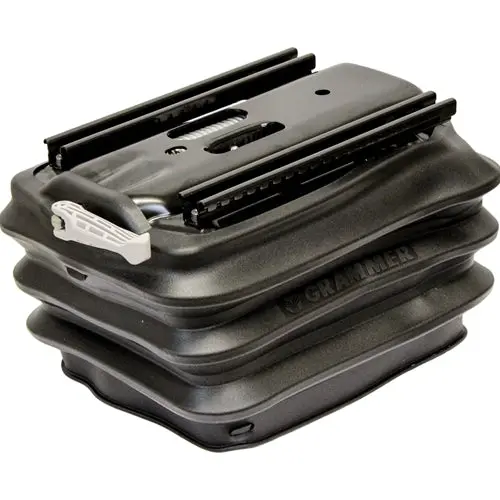

This MSG83 Compact Mechanical Suspension as a direct replacement to provide vibration reduction to improve comfort, performance and productivity in your ag or construction equipment, ensuring that you have the smoothest ride possible.This suspension is ideal where space is limited.
There are two ways to adjust the ride, the Height Adjustment Dial and the Flip-Handle. To navigate through the 3 height settings, you simply turn the dial located below the flip handle. Rotating the flip handle clockwise increases the tension in the spring while rotating it counterclockwise decreases tension in the spring.
Ideal for smaller utility tractorsNarrow, compact mechanical suspension
Frame width of 8.92″ x 12.25″ Long
Suspension travel of 3.12″
Flip handle weight adjustment
Front weight indicator
Three-position height adjustment
Durable rubber molded suspension cover to keep components free of dirt and dust
Top mount 7.13″ side-to-side.
Please note some applications may require to drill new holes in existing mounting platform, or fabricate brackets to install this seat suspension.
This Seat Suspension will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.
Item # MS209
MSG83 TCA19757 TCA51087 8703 8635 166713FP 1225985 AM1225985 AS166713AP 1022837 1225981 1225979 1225982 1254633 1225980 1254634 1225985 8079 MT40321433 107694 136100 1005266 1051506
