Compact Tractor Seat Featuring Mechanical Suspension System

Description

Mechanical Seat Suspension Assembly for IH

For Multiple Applications Including But Not Limited To:

International 1026, 1066, 1206, 1256, 1456, 1466, 1468, 1566, 21026, 21206, 21256, 21456, 2656, 2706, 2756, 2806, 2826, 2856, 706, 756, 766, 806, 826, 856, 966

Suspension Stroke 4″ / 100mm

Slide Track Fore & Aft Travel Is 6″ / 150mm, C to C rail to rail is 6.75″

Weight Adjustment 110 – 330 lbs. / 50 – 150kg

Black long lever is for the slide track

Gray handle lever in the middle is for adjusting the weight

Gray star shaped knob is to adjust suspension up or down

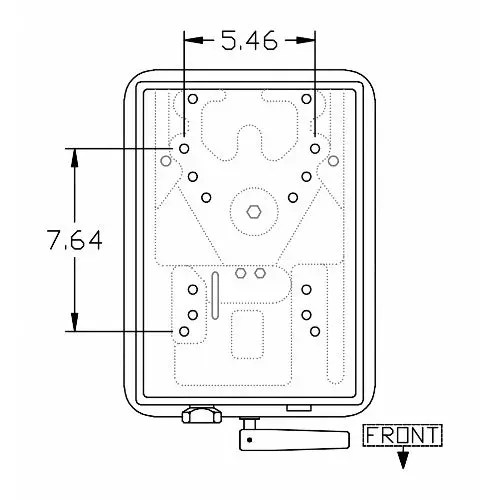

Please note some applications may require to drill new holes in existing mounting platform, or fabricate brackets to install this seat suspension.

This Seat Suspension will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.

Item # MS138

^{8079 TS1080SS 72-1030 721030 A-SSM100 SSM100-RAP SSM100-IRT A-SSM100-AI TCA19757, TCA51087 S830872-HYC S830872}
