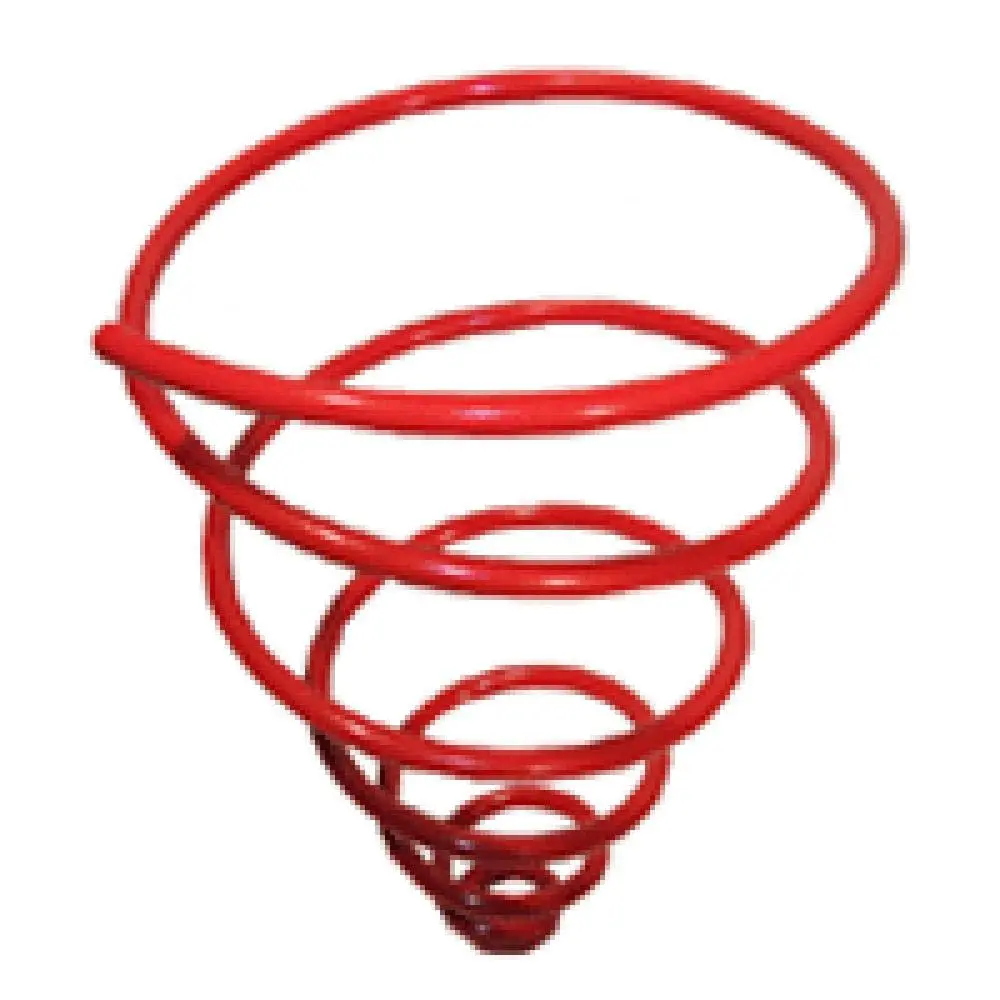

Heavy-Duty Seat Suspension Spring Compatible with International and Farmall Tractors

Description

Spring for Heavy Weight Operator Seat for AC, IH, JD, MH, MM, MF

For Multiple Applications Including But Not Limited To:

Allis-Chalmers C, CA, RC, U, WC, WF  w/ Easy Ride Seats

Case C, CC, CD, CI, CL, CO, D, DC, DE, DH, DI, DL, DO, DS, DV, S, SC, SE, SI, SO  w/ Easy Ride Seats

Cockshutt 550, 560, 570 w/ Easy Ride Seats

Ford 2N, 8N, 9N, NAA / Jubilee w/ Easy Ride Seats

International / Farmall C, H, HV, M, MD, Super C, Super H, Super M, Super MTA, 200, 230, 300, 350, 400, W-400, 450, W-450, 460, 560, 600, 650, 660 (F-20, F-30 w/ Easy Ride Seat)

John Deere A, B, G, H

Long A and AW with Monroe seat

Massey-Harris 22, 30, 33, 333, 44, 444, 55, 555, Mustang  w/ Velvet Ride Seats

Minneapolis-Moline Avery A, Avery BF, Avery R, BG  w/ Easy Ride Seats

Oliver 60, 70, 80, 90 w/ Easy Ride Seats

Also fits Graham Bradley and Empire 90

13-1/4″ free length
3/8″ wire diameter
8-5/8″ O.D. big end
1-5/8″ O.D. small end
Replaces IH heavy weight # 5 spring
If needed, order (2) springs & they can be threaded together to make a heavier spring than IH ever made.

Item # SH114

^{WN-354670R2, 101283, 354670R2-RAP, 352598R2, 354671R2, A-354670R2, A-354670R2-A, 030921-4006, 030921-1154-4006, 354670R2-FBM, T19117, T19886, 230279, 760669M1, 760666M R0166, 354670R1, 354673R91, 360083R91, 354671R2, 354672R91, 352598R2, 353006R91 760666M2 760699M1 70230279 101283FP IHS030 R0166}
