Description
The Jazzy® Ultra Light power wheelchair, weighing just 33 pounds without the battery, boasts superior durability with its all-carbon fiber frame. Foldable, portable, and comfortable, it’s the perfect travel companion for your customers.
- Proudly made in North America

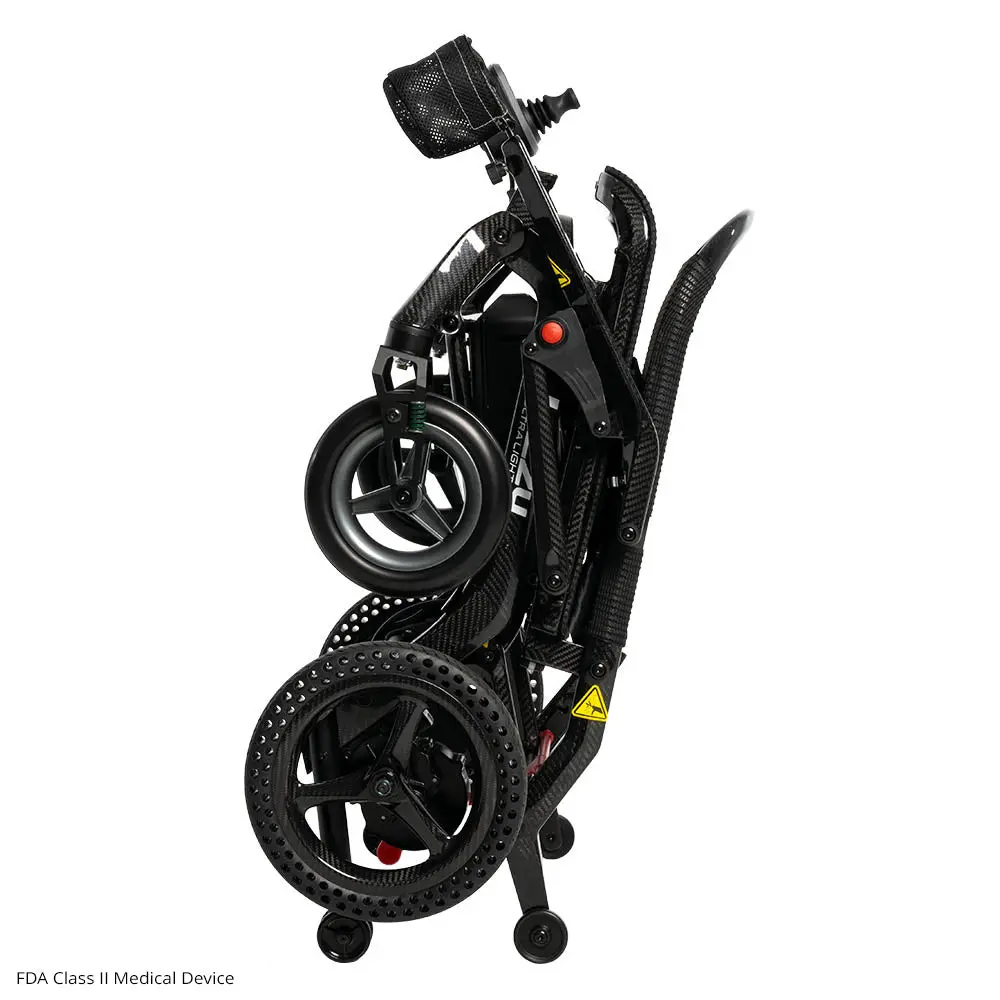

- Easy fold design that locks into a folded position
- Weighs just 33 pounds without the battery
- Mesh back and seat with standard cushion for extra support
- Durable all-carbon-fiber frame
- Programmable joystick controller can attach to either armrest
- Powered by an airline compliant** lithium battery (10AH Only)
- Ground clearance of 2″
- Front suspension to ensure a smooth ride over various terrain
- Compatible with our new Jazzy Travel Bag
- Rear lights illuminate when the unit is in motion
- Mesh cup holder comes standard
Jazzy® Ultra Light Specifications
| Model | Jazzy® Ultra Light |
|---|---|
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 33.19” |
| Overall Width1 | 24.49” |
| Overall Length1 | 40.91” |
| Maximum Speed2 | Up to 3.69 mph |
| Ground Clearance1 | 2.17” at motor |
| Casters Wheels1 | 8” Flat free |
| Drive Wheels1 | 10.71” Flat free |
| Rear Casters1 | N/A |
| Drivetrain | Two motor, rear-wheel drive |
| Braking System | “Intelligent Braking” electronic regenerative, disc park brake |
| Suspension Type | Suspension Caster Forks |
| Seat Dimensions1 | 18″ x 18″ |
| Component Weights3 | Complete Assembly: 33 lbs. 10Ah Battery: 5 lbs. 20Ah Battery: 7 lbs. |
| Total Weight4 | 38 lbs. with 10 Ah Battery 40 lbs. with 20 Ah Battery 33 lbs. without battery |
| Battery Requirements4 | 10Ah, 25.2V Lithium-ion or 20Ah, 25.2V Lithium-ion |
| Battery Charger | Off-Board |
| Warranty | Frame: Lifetime limited Drivetrain: 1-year limited Electronics: 1-year limited Battery: 13-Month |
Note: All specifications are subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition, and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius, and ground clearance can be subject to variance of ±3%.
1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of ±3%.
2 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition, and tire condition. These specifications can be subject to a variance of ±10%.
3 Battery weight may vary based on manufacturer.
4 AGM or gel cell type required.
Jazzy Ultra Light Brochure (English)
