Description
The Motve MT3 is a high-performance four-piston caliper system designed for the front wheels of vehicles. Below is a detailed analysis of its technical specifications:
Technical Specifications:
- Piston Diameter: 4*φ38.1mm
- Sizable pistons provide robust clamping force.
- Piston Area: 45.3cm²
- Brake Disc Diameter: φ285mm – φ295mm
- Suitable for smaller to medium-sized brake discs.
- Brake Disc Thickness (Max/Min): 24mm/22mm
- Adequate thickness for good thermal capacity and durability.
- Caliper Weight: 2kg
- Lightweight design reduces un-sprung weight.
- Thread Specification of Fuel Inlet: M10*1
- Mounting Hole Center Distance: 130mm
- Mounting Hole Offset: 43.5mm
- Mounting Hole Diameter: φ10.1mm
- Distance from Mounting Surface to Brake Disc Top: 53mm

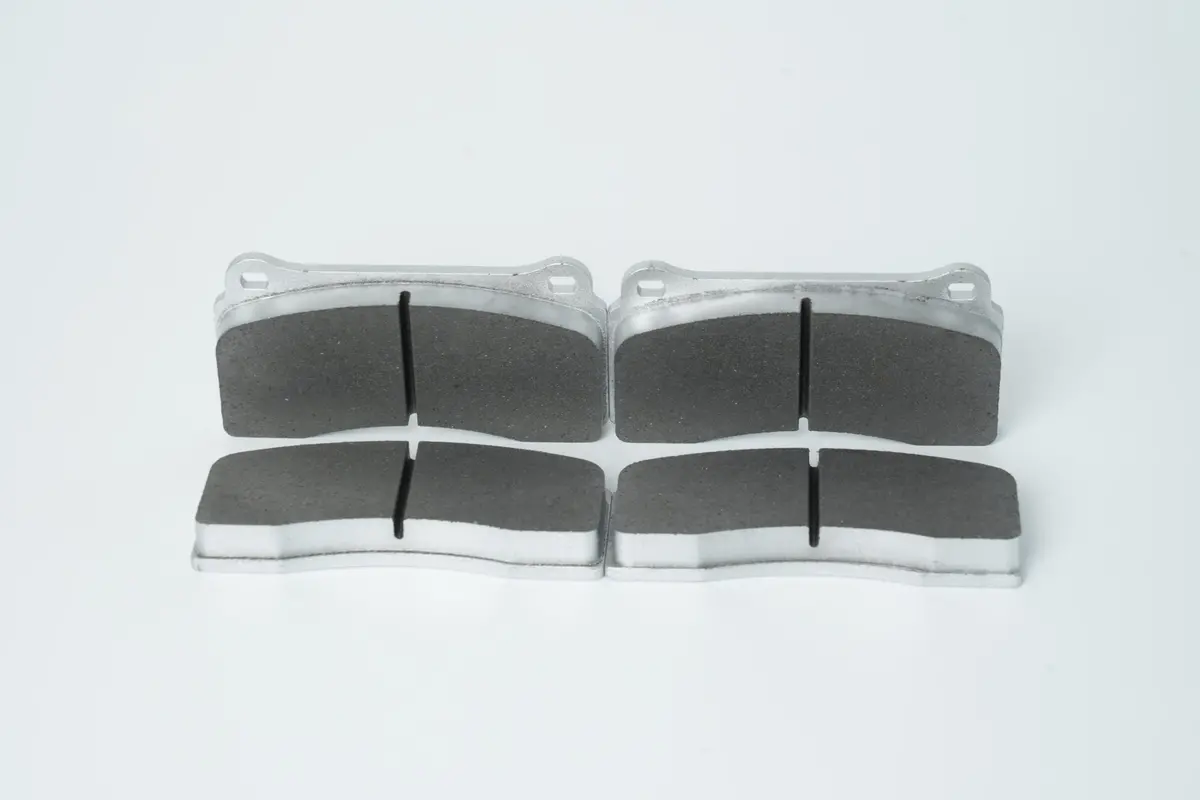

Brake Pad Specifications:
- Brake Pad Model: MT3D46
- Brake Pad Thickness: 16.5mm
- Friction Surface Width: 46mm
- Friction Block Area: 43.5cm²
- Brake Pad Material: Low-Metallic (M-Series)
- Provides balanced performance, noise reduction, and wear resistance.

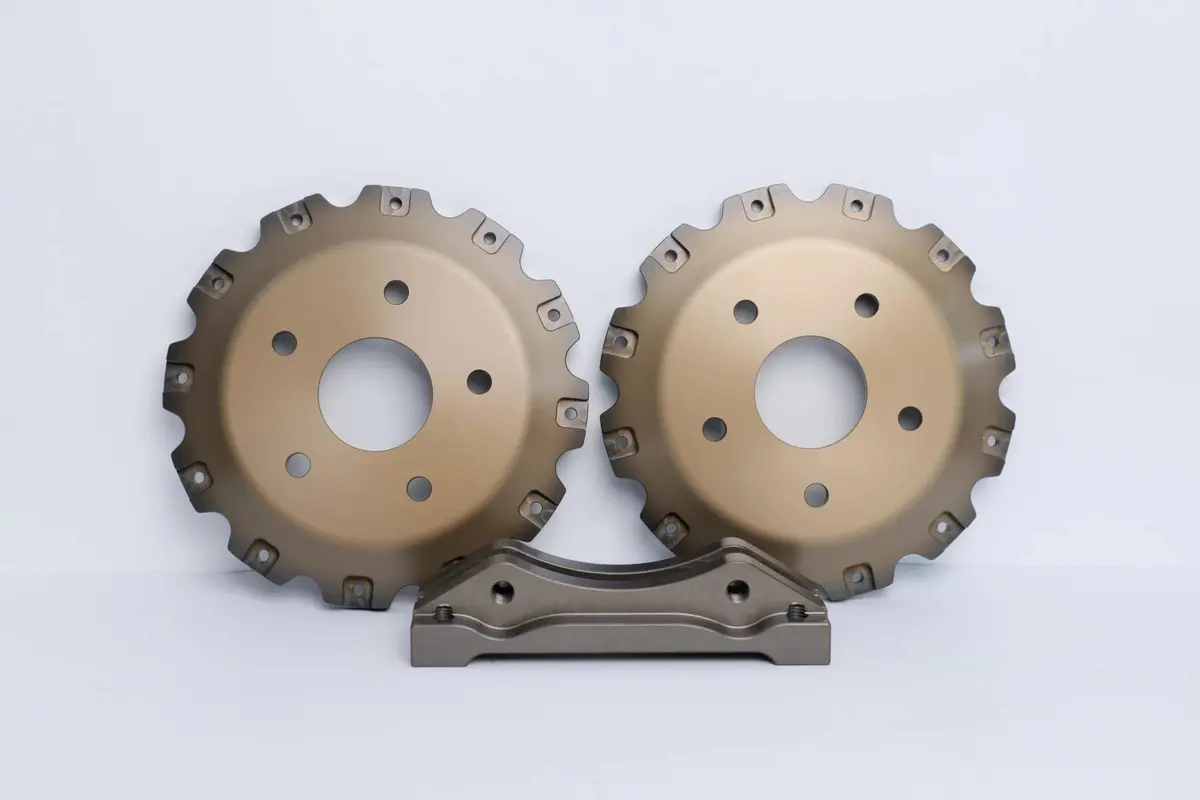

Brake Disc Specifications:
- Brake Disc Model: MTP28524D46
- Brake Disc Diameter: φ285mm, φ295mm
- Brake Disc Thickness: 24mm
- Friction Surface Width: 46mm
- Brake Disc Ventilation: 48 Ventilation Holes in Forward Arch Ribs
- Enhances cooling, helping to reduce brake fade.
- Ventilation Core Process: Film-covered Sand
- Mounting Hole PCD: 10*166
- Mounting Hole Diameter: φ166mm
- Positioning Ring Diameter: φ152mm
- Petal Step: 0.2mm
- Brake Disc Marking Method: Arc, Line, Herringbone, Drilling, etc.
- Brake Disc Surface Treatment: Phosphating and Metachromatic Coating
- Brake Disc Material: G3500 High Carbon
- Heat Treatment: 580℃ Heat Treatment
Caliper Technical Inspection Specifications:
- Caliper Housing Forging Strength: Tensile Strength ob≥320MPa
- Housing Hardness: Hardness HV≥400
- Low-pressure Seal Test: Passed
- High-pressure Seal Test: Passed
- Appearance: Painted, no collision damage, consistent gloss.
- Ultra-high Pressure Test: Passed
- Inspection Standard: Meets QC/T592 requirements.
The Motve MT3 caliper system is a reliable and high-performance braking solution for the front wheels, designed to offer enhanced stopping power, durability, and safety. Its compliance with quality standards and rigorous testing ensures its suitability for high-performance applications.
Lead Time: Approximately 5–14 business days.
