Description

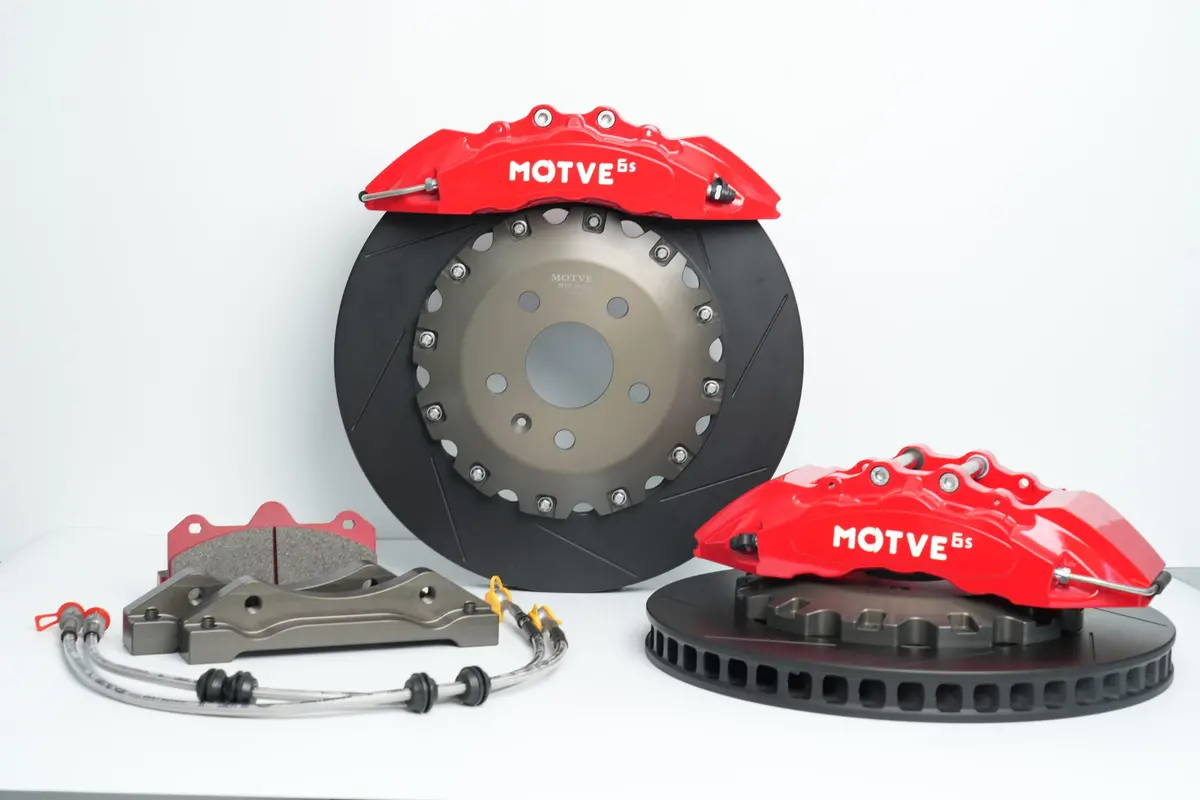

The Motve MT6S is a high-performance 6-piston caliper system designed for front wheels, showcasing a blend of precision engineering and quality materials to deliver exceptional braking performance. Below is an in-depth analysis of its technical specifications:
Technical Specifications:
- Piston Diameter: φ27mm, φ31.8mm, φ36mm
- The varied piston diameters are crucial for ensuring even pressure distribution across the brake pads, resulting in consistent braking performance.
- Piston Area: 48cm²
- A substantial piston area, indicative of a robust clamping force.
- Brake Disc Diameter: φ355mm, φ362mm, φ380mm
- Compatibility with various disc diameters allows versatility and adaptability to different vehicle setups.
- Brake Disc Thickness (Max/Min): 32mm/30mm, 34mm for φ380
- Adequate thickness for efficient heat dissipation, reducing the risk of brake fade during intensive use.
- Caliper Weight: 3.5kg
- A balanced weight that optimizes durability and performance efficiency.
- Thread Specification of Fuel Inlet: M10*1
- Mounting Hole Center Distance: 180 mm
- Mounting Hole Offset: 42 mm
- Mounting Hole Diameter: φ12.1mm
- Distance from Mounting Surface to Brake Disc Top: 63.5mm
Brake Pad Specifications:
- Brake Pad Model: MT6D55
- Brake Pad Thickness: 16.5mm
- Friction Surface Width: 54mm
- Friction Block Area: 68.4cm²
- Brake Pad Material: Low-Metallic (M-Series)
- This material is renowned for providing a balanced performance, offering durability, and reducing rotor wear.
Brake Disc Specifications:
- Brake Disc Model: MTP35532D55.5
- Brake Disc Diameter: φ355mm
- Brake Disc Thickness: 32mm
- Friction Surface Width: 55.5mm
- Brake Disc Ventilation: 48 Ventilation Holes in Forward Arch Ribs
- Ventilation Core Process: Film-covered Sand
- Mounting Hole PCD: 12*215.9
- Mounting Hole Diameter: 6.4mm
- Positioning Ring Diameter: φ195mm
- Petal Step: 0.2mm
- Brake Disc Marking Method: Arc, Line, Herringbone, Drilling, etc.
- Brake Disc Surface Treatment: Phosphating and Metachromatic Coating
- Brake Disc Material: G3500 High Carbon
- Heat Treatment: 580℃ Heat Treatment
Caliper Technical Inspection Specifications:
- Caliper Housing Forging Strength: Tensile Strength ob≥320MPa
- Housing Hardness: Hardness HV≥400
- Low-pressure Seal Test: Passed
- High-pressure Seal Test: Passed
- Appearance: The caliper features a painted appearance with no collision damage and a consistent gloss.
- Ultra-high Pressure Test: Passed
- Inspection Standard: The brake caliper assembly meets all the requirements of QC/T592.
The Motve MT6S high-performance braking system is designed to handle high-stress situations, providing reliable and consistent braking power for performance-oriented vehicles. With its blend of quality materials, precise engineering, and stringent quality control, it stands out as a top choice for automotive enthusiasts seeking enhanced braking capabilities.
Lead Time: Approximately 5–14 business days.
