Description

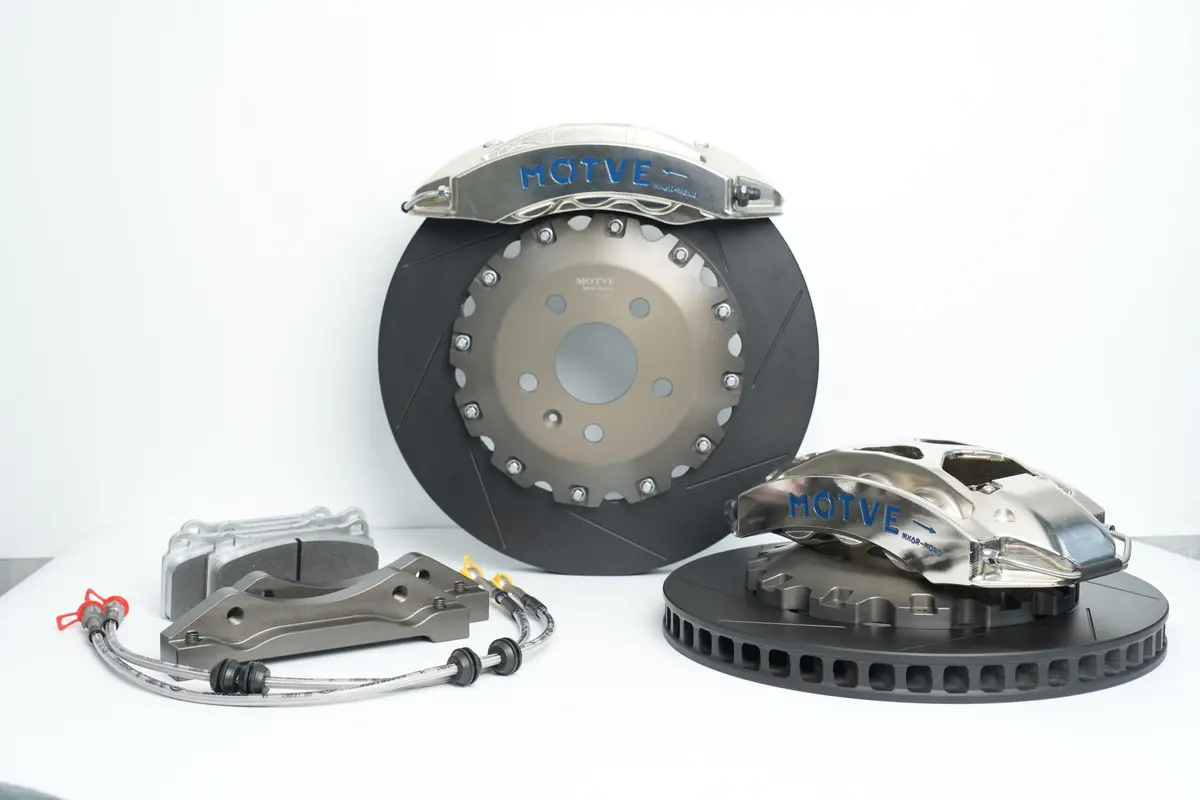

Introducing the Motve MX6R MONO, a high-performance Racing 6 pistons caliper car brake system meticulously crafted for serious racers in pursuit of the ultimate in stopping power. Constructed from aircraft-grade aluminum, this caliper ensures maximum strength and durability, while the six pistons deliver an unparalleled braking force. Fully compatible with OEM car brake systems, the MX6R MONO promises a seamless installation with no need for additional modifications.
Key Features and Benefits:
- Aircraft-Grade Aluminum Construction: For maximum strength and durability.
- Six Piston Design: Provides unparalleled braking force for serious racing applications.
- OEM Compatibility: Fully compatible with OEM car brake systems, ensuring a hassle-free installation.
Technical Specifications:
- Piston Diameter: 2φ27mm, 2φ31.8mm, 2*φ34mm
- Piston Area: 48cm²
- Brake Disc Diameter: φ355mm, φ362mm, φ380mm
- Brake Disc Thickness: Max 32mm/34mm, Min 30mm
- Caliper Weight: 2.9kg
- Fuel Inlet Thread Specification: M10*1
- Mounting Hole Center Distance: 210mm
- Mounting Hole Offset: 42mm
- Mounting Hole Diameter: 12.1mm
- Distance from Mounting Surface to Brake Disc Top: 63.5mm
Brake Pad Specifications:
- Brake Pad Model: MX6r mono D55(9660)
- Brake Pad Thickness: 18mm
- Brake Pad Width: 151.9mm
- Friction Block Area: 68.4cm²
- Brake Pad Material: Low-Metallic (M-Series)
Brake Disc Specifications:
- Brake Disc Diameter: φ355mm, φ378mm
- Brake Disc Thickness: 32mm, 34mm
- Marking Method: Arc, Line, Herringbone, Drilling, etc.
- Surface Treatment: Phosphating and Metachromatic Coating
Caliper Technical Inspection Specifications:
- Forging Strength of Caliper Housing: Tensile Strength ob≥320MPa
- Housing Hardness: Hardness HV≥400
- Low-pressure Seal Test: Passes with 0.4MPa air pressure, stable for 5s, pressure drop ≤ 100Pa
- High-pressure Seal Test: Passes with 12MPa air pressure, stable for 5s, pressure drop ≤ 0.2MPa
- Appearance: Painted, no collision damage, consistent gloss
- Ultra-high Pressure Test: Passes with 30MPa oil pressure, no failure or bursting
- Inspection Standard: Complies with QC/T592 for passenger car brake caliper assembly performance and test methods
Lead Time: Approximately 5–14 business days.
