Description

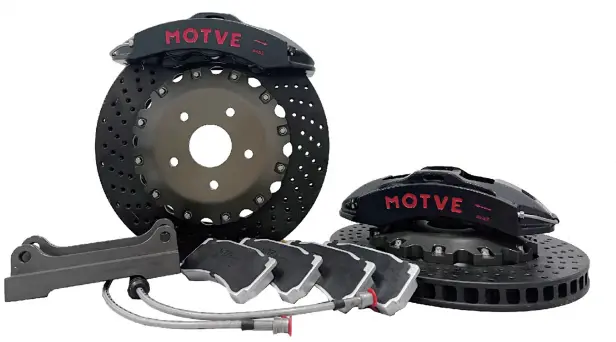

The Motve MX6S High-Performance 6 Piston Caliper System is a groundbreaking solution for vehicle owners and enthusiasts who are in pursuit of unparalleled braking performance and safety. With its six-piston configuration and meticulously crafted design, the MX6S stands out as a premium choice for both track enthusiasts and regular drivers alike.
Unmatched Stopping Power
- Optimal Performance: Designed for the ultimate braking experience, ensuring that your vehicle responds quickly and effectively whenever you hit the brakes.
- Versatile Use: Perfect for high-speed track racing or daily driving, providing consistent and reliable performance in any situation.
- Six-Piston Configuration: Offers superior braking force, ensuring that your vehicle comes to a stop when you need it to.
Enhanced Safety Features
- Advanced Design: Incorporates the latest in braking technology, ensuring that your vehicle remains safe under the most demanding conditions.
- Peace of Mind: Drive with confidence, knowing that you have a top-tier braking system installed in your vehicle.
- Reliability: Built to last and endure, providing enhanced safety and performance over time.
Stylish and Functional Design
- Aesthetic Appeal: Adds a touch of style to your vehicle with its sleek and modern design.
- Functional Excellence: Designed not just for looks, but to provide top-notch performance.
- Performance and Style: Enjoy the best of both worlds with a system that performs as good as it looks.
Technical Specifications
- Piston Diameter: 2φ27mm, 2φ31.8mm, 2*φ34mm
- Piston Area: 48cm²
- Brake Disc Diameter: φ355mm – φ378mm
- Brake Disc Thickness: 32mm
- Caliper Weight: 3.2kg
- Fuel Inlet Thread Specification: M10*1
- Mounting Hole Center Distance: 180mm
- Mounting Hole Offset: 2mm
- Mounting Hole Diameter: 12mm
Brake Pad Specifications
- Brake Pad Model: MX6D54
- Brake Pad Thickness: 18mm
- Brake Pad Width: 151.9mm
- Friction Block Area: 72cm²
- Brake Pad Material: Low-Metallic (M-Series)
Brake Disc Specifications
- Brake Disc Diameter: φ355mm, φ378mm
- Brake Disc Thickness: 32mm
- Brake Disc Marking Method: Arc, Line, Herringbone, Drilling, etc.
- Surface Treatment: Phosphating and Metachromatic Coating
Caliper Technical Inspection Specifications
- Forging Strength: Tensile Strength ob≥320MPa
- Housing Hardness: Hardness HV≥400
- Low-pressure Seal Test: Passes with 0.4MPa air pressure, stable for 5s, pressure drop ≤ 100Pa
- High-pressure Seal Test: Passes with 12MPa air pressure, stable for 5s, pressure drop ≤ 0.2MPa
- Appearance: Painted, no collision damage, consistent gloss
- Ultra-high Pressure Test: Passes with 30MPa oil pressure, no failure or bursting
- Inspection Standard: Meets QC/T592 requirements
The Motve MX6S is more than just a brake caliper system; it’s an investment in performance and safety. Upgrade your vehicle today and experience the difference that unparalleled stopping power can make.
Lead Time: Approximately 5–14 business days.
