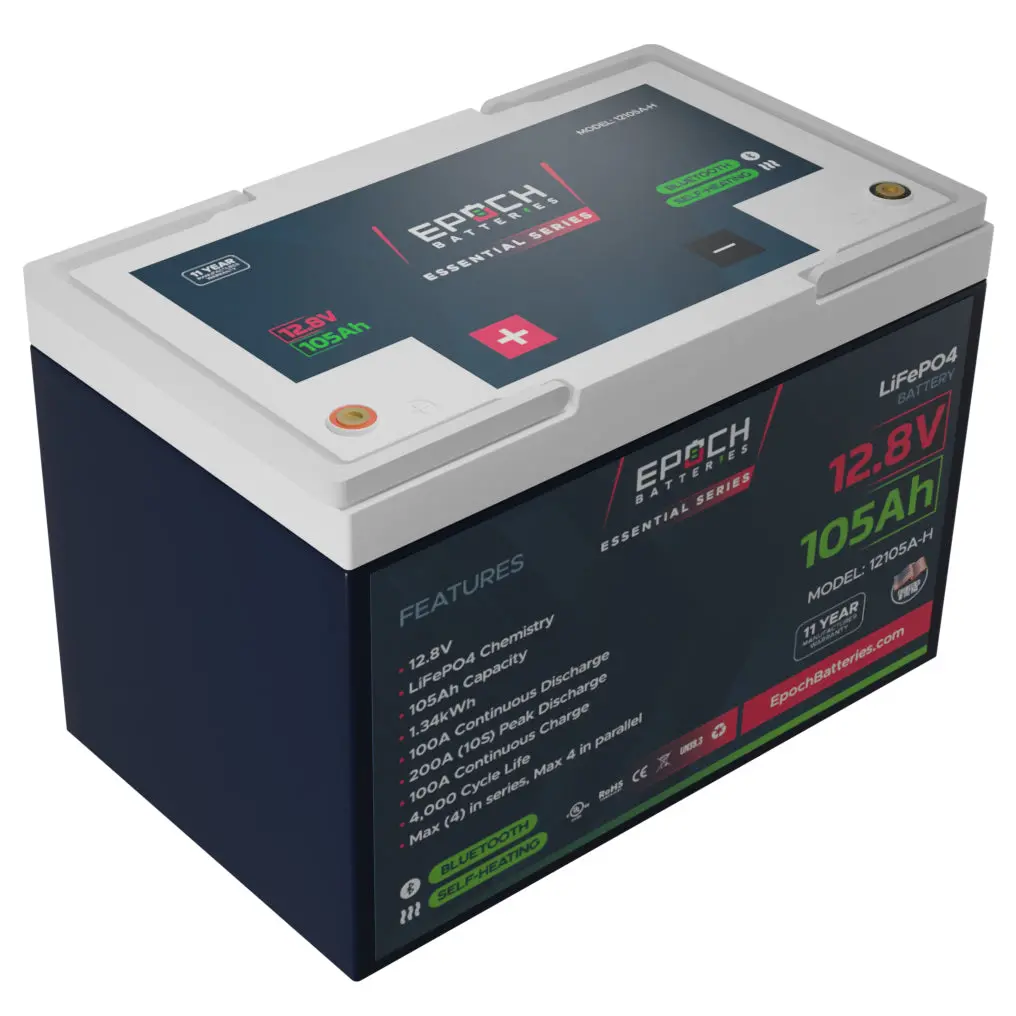

(Pre-Order) Epoch Essentials 12V 105Ah LiFePO4 Battery — Bluetooth Enabled & Cold-Weather Heated, 1.34kWh, Ships May 15

Description

🔋 Epoch 12V 105Ah Heated Bluetooth LiFePO₄ Battery (Model 12105A-H)

Built for Harsh Environments. Designed for Smart Power.

The Epoch Essentials 12105A-H is a technologically advanced, high-performance LiFePO₄ (Lithium Iron Phosphate) deep cycle battery designed for energy independence in any condition—including freezing temperatures. With an integrated heater, smart Bluetooth diagnostics, and an ultra-stable LiFePO₄ chemistry, this battery is optimized for solar, RV, marine, off-grid, and backup power applications.

---

🧰 Core Features

🔥 Integrated Heating System

• Auto-heating for cold-weather charging: Enables safe charging down to –20°C (–4°F).

• Automatically activates when charging in low temps, preventing damage from cold charging.

📱 Bluetooth Communication

• Compatible with the Epoch Li-Ion app for iOS and Android.

• Real-time monitoring of voltage, current, temperature, SoC, cycle count, and more.

⚡ High Performance & Safety

• Max Discharge: 105A continuous / 200A peak (10s).

• Max Charge: 100A continuous / 200A peak (10s).

• Built-in BMS (Battery Management System) for:

  • Over/under-voltage protection

  • Over-current protection

  • Short circuit protection (600A @ 500µs)

  • Over/under-temperature protection

  • Cell balancing

🌡️ Wide Temperature Range

• Operating temp: –20°C to 60°C (–4°F to 140°F)

• Storage temp: 15°C to 35°C (59°F to 95°F)

• Altitude limit: < 3000m (9842 ft)

---

🧪 Technical Specifications

Category	Detail
Nominal Voltage	12.8V
Capacity (0.2C)	105Ah (1.34 kWh)
Chemistry	LiFePO₄ (Lithium Iron Phosphate)
Cycle Life	>4000 cycles @ 80% DOD
Internal Resistance	≤ 30mΩ @ 1kHz
Charge Voltage	14.2V
Float Voltage	13.6–13.8V
Low Voltage Disconnect	10V
Reconnect Voltage	12V
Max Charge Current	100A
Max Discharge Current	105A (200A @ 10s)
Recommended Charge Current	50A
Recommended Discharge Current	100A
Short Circuit Protection	600A @ 500µs
Communications	Bluetooth, CAN Bus, RS485
Self-Discharge Rate	≤ 3% per month
Ingress Protection	IP54
Terminal Type	M8 (Torque: 20–35 Nm)
Weight	10kg (22 lbs)
Dimensions (L×W×H)	259×167×218 mm (10.19×6.57×8.60 in)
Max Series Connection	4 (up to 51.2V)
Max Parallel Connection	4 (up to 420Ah)

🔧 Installation & Use

✅ Mounting

• Upright installation only

• Ensure good ventilation and a dry, shaded area

• Avoid direct sunlight and temperature extremes

• Keep battery accessible for maintenance

🔌 Connection Options

• Series: Voltage increases, Ah remains same (e.g., 4× batteries = 48V 105Ah)

• Parallel: Voltage same, capacity increases (e.g., 4× batteries = 12V 420Ah)

• Series-Parallel: Combine both for scalable 24V/36V/48V systems

🔗 Busbar Preferred

• Use busbars for multi-battery setups to balance charge/discharge paths and reduce resistance

---

🔋 Charging Parameters

• Bulk/Absorption Voltage: 14.2V

• Float Voltage: 13.6–13.8V

• Compatible Chargers: Must support LiFePO₄ profiles

• Initial Charge: Fully charge before first use

• Charge Temp Range: –20°C to 60°C (heater enables cold charging)

Note: Android 10+ requires location permissions enabled for Bluetooth scanning in the Epoch app.

---

🧼 Maintenance Best Practices

• Inspect terminals and case monthly

• Clean with a soft cloth and non-corrosive solution

• Tighten connections (20–35Nm) but avoid over-torque

• Keep logs of voltage and temperature for long-term health monitoring

• Store at 50% SoC if idle for extended periods

---

🛑 Safety & Compliance

• Only use LiFePO₄-compatible chargers

• Avoid exposure to open flames or water

• Charge and discharge within specified current and voltage ranges

• Use proper fuses/circuit breakers rated at 125–150% of max operating current

---

🧭 Ideal Applications

• Off-Grid Solar Systems

• Marine & RV Power

• Vanlife and Overlanding

• Emergency Backup Systems

• Remote Telecom, Lighting, Surveillance

---

🛡️ Warranty

• 11-year limited warranty

• Covers manufacturing defects under normal use

• Proof of purchase and adherence to manual required for claims

---

Final Word

Whether you’re powering your off-grid homestead in sub-zero winters, keeping your RV lit and climate-controlled, or ensuring backup power during outages, the Epoch Essentials 12105A-H delivers uncompromising safety, intelligence, and reliability. Backed by a powerful warranty and built for the long haul, it’s a battery you can count on—year after year.
