Description

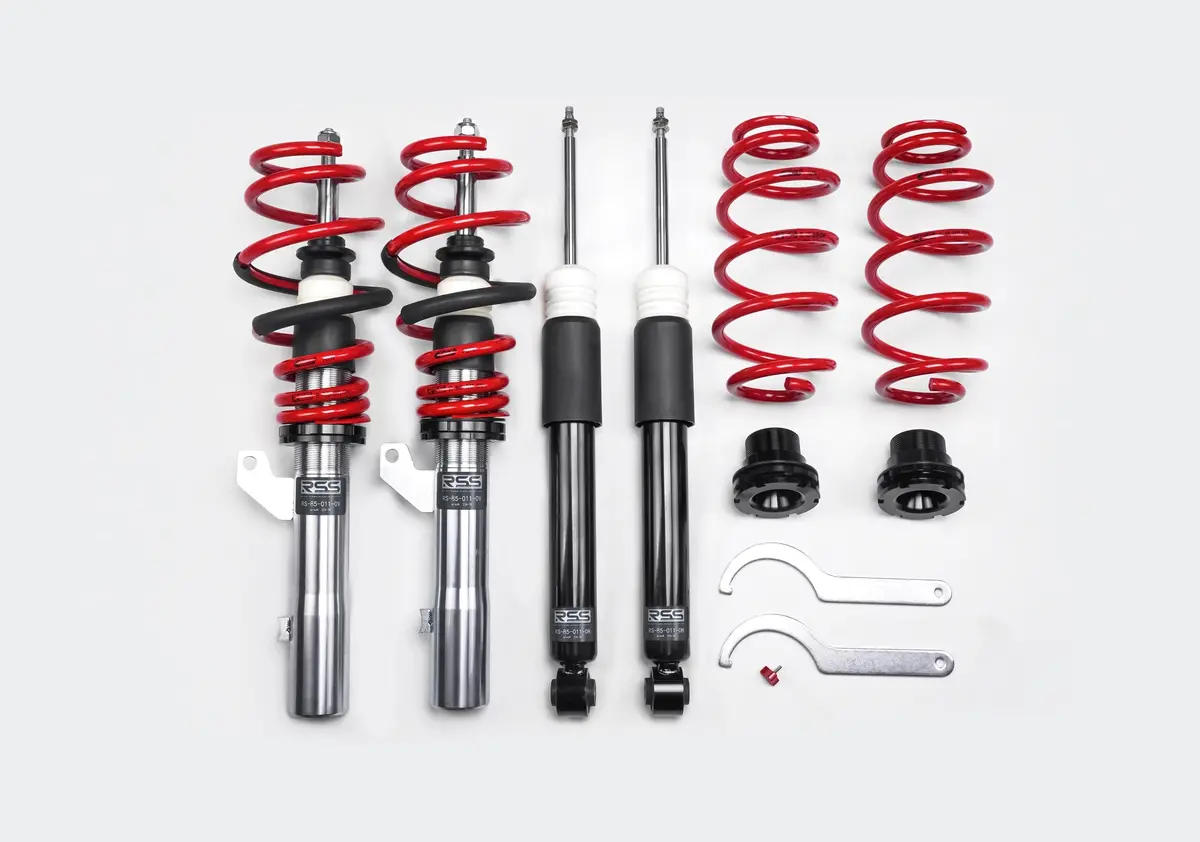

RSS HAD Adjustable Coilovers for AUDI A3 SPORTBACK (8PA) 1.4 TFSI

Transform your AUDI A3 SPORTBACK (8PA) 1.4 TFSI with RSS HAD Adjustable Coilovers. Engineered with Eibach springs and Fuchs damping oil, these coilovers deliver the perfect balance of performance and daily-driving comfort.

Technical Specifications

Vehicle	AUDI A3 SPORTBACK (8PA) 1.4 TFSI
Year	09.04 – 03.13
Damping Adjustment	24 levels (Comfort to Sport)
Spring Type	Custom Eibach Sport Springs
Damping Oil	Fuchs Premium Damping Oil
Damper Design	Twin-Tube
Lowering Range	35-70mm (varies by vehicle)
Warranty	2 Years
Compatible Sway Bar Adjustment	Front 2 gears，Rear 2 gears
Compatible Sway Bar Size	Front 26 MM，Rear 22 MM

Key Features

• Custom Eibach Springs: Individually rated sport springs for optimum performance and handling.
• Fuchs Damping Oil: World-renowned damping fluid rated for extreme temperature ranges.
• 24-Level Damping Adjustment: Fine-tune from comfort cruising to aggressive track settings.
• Twin-Tube Damper Design: Superior heat dissipation for consistent performance under hard driving.
• Helper Spring System: Prevents spring-damper separation during full droop.
• 2-Year Warranty: Full coverage on materials and workmanship.

Frequently Asked Questions

What vehicle does this fit?

This kit is specifically designed for the AUDI A3 SPORTBACK (8PA) 1.4 TFSI (09.04 – 03.13). Each application is individually tested for a perfect OEM-quality fit.

How does the 24-level damping adjustment work?

Simply turn the adjustment knob on each damper. Level 1 provides the softest, most comfortable ride. Level 24 delivers maximum firmness for spirited driving or track use.

What is the lowering range?

The RSS HAD system offers 35-70mm of lowering (exact range varies by vehicle). Height is adjustable via threaded spring perches.

Is professional installation required?

We recommend professional installation and a wheel alignment after fitting for optimal performance and safety.

Can I pair this with an RSS Performance Sway Bar?

Yes! RSS HAD Coilovers are designed to work perfectly with RSS Performance Sway Bars for your AUDI A3 SPORTBACK (8PA) 1.4 TFSI.
